[HiPKI Local Server] /selfTest.htm 檢測 IC 卡功能 | 自然人憑證開發筆記
2024-01-11
自然人憑證
無標籤

首頁 > 系列文 > 自然人憑證開發筆記

/selfTest.htm#

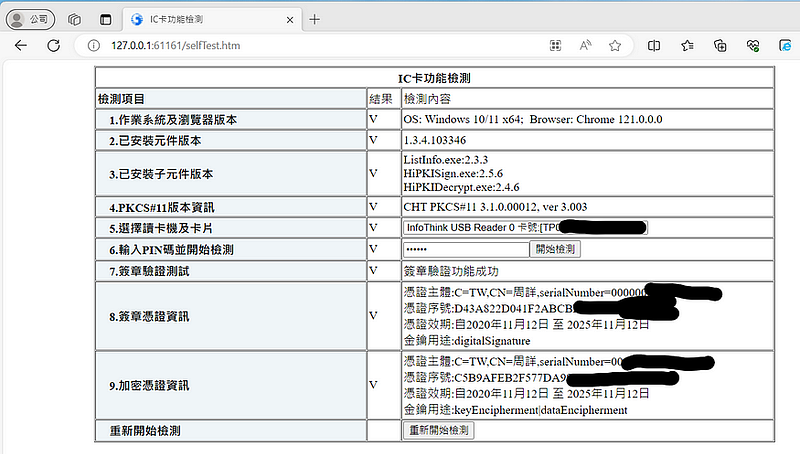

想測試自然人憑證功能可以 http://127.0.0.1:61161/selfTest.htm，可以看到卡片內有兩組憑證，分別用於簽章、加密，另外還有卡號、姓名、序號等資訊。

Request#

Terminal window
GET http://127.0.0.1:61161/selfTest.htm

Response#

<!DOCTYPE html>
<html>
  <meta http-equiv="X-UA-Compatible" content="IE=EDGE" charset="utf-8" />


  <head>
    <title>IC卡功能檢測</title>
    <script type="text/javascript">
      var passString = "V";
      var failString = "X";
      (function (window) {
        {
          var unknown = "-";


          var nVer = navigator.appVersion;
          var nAgt = navigator.userAgent;
          var version = "" + parseFloat(navigator.appVersion);
          var majorVersion = parseInt(navigator.appVersion, 10);
          var nameOffset, verOffset, ix;


          // trim the version string
          if ((ix = version.indexOf(";")) != -1)
            version = version.substring(0, ix);
          if ((ix = version.indexOf(" ")) != -1)
            version = version.substring(0, ix);
          if ((ix = version.indexOf(")")) != -1)
            version = version.substring(0, ix);


          majorVersion = parseInt("" + version, 10);
          if (isNaN(majorVersion)) {
            version = "" + parseFloat(navigator.appVersion);
            majorVersion = parseInt(navigator.appVersion, 10);
          }


          // mobile version
          var mobile = /Mobile|mini|Fennec|Android|iP(ad|od|hone)/.test(nVer);


          // system
          var os = unknown;
          var clientStrings = [
            { s: "Windows 10/11", r: /(Windows 10.0|Windows NT 10.0)/ },
            { s: "Windows 8.1", r: /(Windows 8.1|Windows NT 6.3)/ },
            { s: "Windows 8", r: /(Windows 8|Windows NT 6.2)/ },
            { s: "Windows 7", r: /(Windows 7|Windows NT 6.1)/ },
            { s: "Windows Vista/Windows Server 2008", r: /Windows NT 6.0/ },
            { s: "Windows Server 2003", r: /Windows NT 5.2/ },
            { s: "Windows XP", r: /(Windows NT 5.1|Windows XP)/ },
            { s: "Windows 2000", r: /(Windows NT 5.0|Windows 2000)/ },
            { s: "Windows ME", r: /(Win 9x 4.90|Windows ME)/ },
            { s: "Windows 98", r: /(Windows 98|Win98)/ },
            { s: "Windows 95", r: /(Windows 95|Win95|Windows_95)/ },
            {
              s: "Windows NT 4.0",
              r: /(Windows NT 4.0|WinNT4.0|WinNT|Windows NT)/,
            },
            { s: "Windows CE", r: /Windows CE/ },
            { s: "Windows 3.11", r: /Win16/ },
            { s: "Android", r: /Android/ },
            { s: "Open BSD", r: /OpenBSD/ },
            { s: "Sun OS", r: /SunOS/ },
            { s: "Linux", r: /(Linux|X11)/ },
            { s: "iOS", r: /(iPhone|iPad|iPod)/ },
            { s: "Mac OS X", r: /Mac OS X/ },
            { s: "Mac OS", r: /(MacPPC|MacIntel|Mac_PowerPC|Macintosh)/ },
            { s: "QNX", r: /QNX/ },
            { s: "UNIX", r: /UNIX/ },
            { s: "BeOS", r: /BeOS/ },
            { s: "OS/2", r: /OS\/2/ },
            {
              s: "Search Bot",
              r: /(nuhk|Googlebot|Yammybot|Openbot|Slurp|MSNBot|Ask Jeeves\/Teoma|ia_archiver)/,
            },
          ];
          for (var id in clientStrings) {
            var cs = clientStrings[id];
            if (cs.r.test(nAgt)) {
              os = cs.s;
              break;
            }
          }


          var osVersion = unknown;


          if (/Windows/.test(os)) {
            osVersion = /Windows (.*)/.exec(os)[1];
            os = "Windows";
          }


          switch (os) {
            case "Mac OS X":
              osVersion = /Mac OS X (10[\.\_\d]+)/.exec(nAgt)[1];
              break;


            case "Android":
              osVersion = /Android ([\.\_\d]+)/.exec(nAgt)[1];
              break;


            case "iOS":
              osVersion = /OS (\d+)_(\d+)_?(\d+)?/.exec(nVer);
              osVersion =
                osVersion[1] + "." + osVersion[2] + "." + (osVersion[3] | 0);
              break;
          }
        }


        osArch = get_bits_system_architecture();


        if (mobile == true) mobile = " (Mobile) ";
        else mobile = "";


        window.jscd = {
          os: os,
          osVersion: osVersion,
          osArch: osArch,
          mobile: mobile,
        };


        /*
   //Detect Win 11 (replace info) //IE cannot be applied
   var verOffset;
   if ( (os == "Windows") && (osVersion == '10/11') && ((verOffset=nAgt.indexOf("Chrome"))!=-1) ){
    navigator.userAgentData.getHighEntropyValues(["platformVersion"])
     .then(ua => {
      const majorPlatformVersion = parseInt(ua.platformVersion.split('.')[0]);


      if (majorPlatformVersion >= 13) {
       osVersion = "11";


       //replace info
      window.jscd = {
       os: os,
       osVersion: osVersion,
       osArch: osArch,
       mobile: mobile,
      };


      }
     });
    }
    */
      })(this);


      function checkBrowser() {
        var nVer = navigator.appVersion;
        var nAgt = navigator.userAgent;
        var browserName = navigator.appName;
        var fullVersion = "" + parseFloat(navigator.appVersion);
        var majorVersion = parseInt(navigator.appVersion, 10);
        var nameOffset, verOffset, ix;


        // In MSIE, the true version is after "MSIE" in userAgent
        if ((verOffset = nAgt.indexOf("MSIE")) != -1) {
          browserName = "Microsoft Internet Explorer";
          fullVersion = nAgt.substring(verOffset + 5);
        } else if (
          nAgt.indexOf("Trident") != -1 &&
          nAgt.indexOf("rv:11") != -1
        ) {
          browserName = "Microsoft Internet Explorer";
          fullVersion = "11";
        }
        // In Opera, the true version is after "Opera"
        else if ((verOffset = nAgt.indexOf("Opera")) != -1) {
          browserName = "Opera";
          fullVersion = nAgt.substring(verOffset + 6);
        }
        // In Chrome, the true version is after "Chrome"
        else if ((verOffset = nAgt.indexOf("Chrome")) != -1) {
          browserName = "Chrome";
          fullVersion = nAgt.substring(verOffset + 7);
        }
        // In Safari, the true version is after "Safari"
        else if ((verOffset = nAgt.indexOf("Safari")) != -1) {
          browserName = "Safari";
          fullVersion = nAgt.substring(verOffset + 7);
        }
        // In Firefox, the true version is after "Firefox"
        else if ((verOffset = nAgt.indexOf("Firefox")) != -1) {
          browserName = "Firefox";
          fullVersion = nAgt.substring(verOffset + 8);
        }
        // In most other browsers, "name/version" is at the end of userAgent
        else if (
          (nameOffset = nAgt.lastIndexOf(" ") + 1) <
          (verOffset = nAgt.lastIndexOf("/"))
        ) {
          browserName = nAgt.substring(nameOffset, verOffset);
          fullVersion = nAgt.substring(verOffset + 1);
          if (browserName.toLowerCase() == browserName.toUpperCase()) {
            browserName = navigator.appName;
          }
        }


        // trim the fullVersion string at semicolon/space if present
        if ((ix = fullVersion.indexOf(";")) != -1)
          fullVersion = fullVersion.substring(0, ix);
        if ((ix = fullVersion.indexOf(" ")) != -1)
          fullVersion = fullVersion.substring(0, ix);
        majorVersion = parseInt("" + fullVersion, 10);


        if (isNaN(majorVersion)) {
          fullVersion = "" + parseFloat(navigator.appVersion);
          majorVersion = parseInt(navigator.appVersion, 10);
        }
        document.getElementById("browser").innerHTML =
          "OS: " +
          jscd.os +
          " " +
          jscd.osVersion +
          " x" +
          jscd.osArch +
          jscd.mobile +
          ";  Browser: " +
          browserName +
          " " +
          fullVersion;
        if (browserName == "Microsoft Internet Explorer" && majorVersion < 8) {
          document.getElementById("browserPass").innerHTML = failString;
        } else document.getElementById("browserPass").innerHTML = passString;
      }


      function get_bits_system_architecture() {
        var _to_check = [];
        if (window.navigator.cpuClass)
          _to_check.push((window.navigator.cpuClass + "").toLowerCase());
        if (window.navigator.platform)
          _to_check.push((window.navigator.platform + "").toLowerCase());
        if (navigator.userAgent)
          _to_check.push((navigator.userAgent + "").toLowerCase());


        var _64bits_signatures = [
          "x86_64",
          "x86-64",
          "Win64",
          "x64;",
          "amd64",
          "AMD64",
          "WOW64",
          "x64_64",
          "ia64",
          "sparc64",
          "ppc64",
          "IRIX64",
        ];
        var _bits = 32,
          _i,
          _c;
        outer_loop: for (var _c = 0; _c < _to_check.length; _c++) {
          for (_i = 0; _i < _64bits_signatures.length; _i++) {
            if (
              _to_check[_c].indexOf(_64bits_signatures[_i].toLowerCase()) != -1
            ) {
              _bits = 64;
              break outer_loop;
            }
          }
        }
        return _bits;
      }


      function is_32bits_architecture() {
        return get_bits_system_architecture() == 32 ? 1 : 0;
      }
      function is_64bits_architecture() {
        return get_bits_system_architecture() == 64 ? 1 : 0;
      }


      function checkPKCS11Info() {
        document.getElementById("versionPass").innerHTML = failString;
        document.getElementById("libraryPass").innerHTML = failString;
        document.getElementById("slotPass").innerHTML = failString;
        document.getElementById("subVersionPass").innerHTML = failString;
        document.getElementById("hipkiLocalSignServerVersion").innerHTML =
          "檢測中...";
        var xmlreq = new XMLHttpRequest();
        xmlreq.onreadystatechange = function () {
          if (xmlreq.readyState == 4 && xmlreq.status == 200) {
            var ret = JSON.parse(xmlreq.responseText);
            document.getElementById("hipkiLocalSignServerVersion").innerHTML =
              ret.serverVersion;
            document.getElementById("versionPass").innerHTML = passString;
            document.getElementById("subVersion").innerHTML =
              document.getElementById("subVersion").innerHTML +
              "ListInfo.exe:" +
              ret.version +
              "<br/>";
            document.getElementById("subVersionPass").innerHTML = passString;
            document.getElementById("libraryInfo").innerHTML =
              ret.libraryDescription + ", ver " + ret.libraryVersion;
            document.getElementById("libraryPass").innerHTML = passString;
            var slots = ret.slots;
            var selectSlot = document.getElementById("slotDescription");
            selectSlot.innerHTML = "";
            for (var index in slots) {
              var opt = document.createElement("option");
              if (slots[index].token instanceof Object) {
                document.getElementById("slotPass").innerHTML = passString;
                opt.value = slots[index].slotDescription;
                opt.innerHTML =
                  slots[index].slotDescription +
                  " 卡號:[" +
                  slots[index].token.serialNumber +
                  "]";
              } else {
                opt.innerHTML = slots[index].slotDescription + " 未插入卡片";
              }
              selectSlot.appendChild(opt);
            }
          } else {
            document.getElementById("hipkiLocalSignServerVersion").innerHTML =
              "未安裝元件";
            document.getElementById("versionPass").innerHTML = failString;
          }
        };
        xmlreq.open("POST", "/pkcs11info", true);
        xmlreq.send();


        var xmlreq2 = new XMLHttpRequest();
        xmlreq2.onreadystatechange = function () {
          if (xmlreq2.readyState == 4 && xmlreq2.status == 200) {
            var ret = JSON.parse(xmlreq2.responseText);
            document.getElementById("subVersion").innerHTML =
              document.getElementById("subVersion").innerHTML +
              " HiPKISign.exe:" +
              ret.version +
              "<br/>";
            document.getElementById("subVersionPass").innerHTML = passString;
          }
        };
        xmlreq2.open("POST", "/sign", true);
        xmlreq2.send('tbsPackage={"tbs":"123","pin":1234}');


        var xmlreq3 = new XMLHttpRequest();
        xmlreq3.onreadystatechange = function () {
          if (xmlreq3.readyState == 4 && xmlreq3.status == 200) {
            var ret = JSON.parse(xmlreq3.responseText);
            document.getElementById("subVersion").innerHTML =
              document.getElementById("subVersion").innerHTML +
              " HiPKIDecrypt.exe:" +
              ret.version +
              "<br/>";
            document.getElementById("subVersionPass").innerHTML = passString;
          }
        };
        xmlreq3.open("POST", "/decrypt", true);
        xmlreq3.send('tbsPackage={"cipher":"123","pin":1234}');
      }
      function getCertInfo() {
        document.getElementById("signCert").innerHTML = "憑證資料讀取中....";
        document.getElementById("encryptCert").innerHTML = "憑證資料讀取中....";


        var xmlreq = new XMLHttpRequest();
        xmlreq.onreadystatechange = function () {
          if (xmlreq.readyState == 4 && xmlreq.status == 200) {
            var ret = JSON.parse(xmlreq.responseText);
            var slots = ret.slots;
            var selectSlot = document.getElementById("slotDescription");
            for (var index in slots) {
              if (slots[index].slotDescription != selectSlot.value) continue;
              var certs = slots[index].token.certs;
              for (var indexCert in certs) {
                var notAfter = new Date(certs[indexCert].notAfterT * 1000);
                var notBefore = new Date(certs[indexCert].notBeforeT * 1000);
                var validity =
                  "自" +
                  notBefore.getFullYear() +
                  "年" +
                  (notBefore.getMonth() + 1) +
                  "月" +
                  notBefore.getDate() +
                  "日 至 " +
                  notAfter.getFullYear() +
                  "年" +
                  (notAfter.getMonth() + 1) +
                  "月" +
                  notAfter.getDate() +
                  "日";
                var certInfo =
                  "憑證主體:" +
                  certs[indexCert].subjectDN +
                  "<br/>憑證序號:" +
                  certs[indexCert].sn +
                  "<br/>憑證效期:" +
                  validity +
                  "<br/>金鑰用途:" +
                  certs[indexCert].usage;
                if (certs[indexCert].label === "cert1") {
                  document.getElementById("signCertPass").innerHTML =
                    passString;
                  document.getElementById("signCert").innerHTML = certInfo;
                } else if (certs[indexCert].label === "cert2") {
                  document.getElementById("encryptCertPass").innerHTML =
                    passString;
                  document.getElementById("encryptCert").innerHTML = certInfo;
                }
              }
            }
          } else {
          }
        };
        xmlreq.open("GET", "/pkcs11info?withcert=true", true);
        xmlreq.send();
      }


      function startTest() {
        if (!document.getElementById("slotDescription").value) {
          alert("請將卡片插入讀卡機，並選擇插入卡片的讀卡機");
        }
        var xmlreq = new XMLHttpRequest();
        var tbsData = {};
        tbsData["tbs"] = "TBS";
        tbsData["hashAlgorithm"] = "SHA256";
        tbsData["pin"] = encodeURIComponent(
          document.getElementsByName("pin")[0].value
        );
        if (tbsData["pin"].length < 6) {
          alert("PIN碼至少需6碼");
          return;
        }
        tbsData["func"] = "MakeSignature";
        tbsData["signatureType"] = "PKCS7";
        tbsData["slotDescription"] =
          document.getElementById("slotDescription").value;
        var json = JSON.stringify(tbsData);


        xmlreq.open("POST", "/sign", false);
        xmlreq.send("tbsPackage=" + json);
        if (xmlreq.readyState == 4 && xmlreq.status == 200) {
          var ret = JSON.parse(xmlreq.responseText);
          if (ret.ret_code != 0) {
            var msg =
              "簽章檢測失敗, 代碼=" +
              ret.ret_code.toString(16) +
              ", 原因:" +
              ret.message;
            if (ret.last_error)
              msg =
                msg + ", 次代碼=" + ret.last_error + ", 次原因:" + ret.message2;
            document.getElementById("pinPass").innerHTML = failString;
            document.getElementById("signPass").innerHTML = failString;
            document.getElementById("signResult").innerHTML = msg;
            alert(msg);
            return;
          }
          document.getElementById("signResult").innerHTML = "簽章驗證功能成功";
          document.getElementById("signPass").innerHTML = passString;
          document.getElementById("pinPass").innerHTML = passString;
        } else {
          document.getElementById("signResult").innerHTML = "簽章功能失敗";
          document.getElementById("pinPass").innerHTML = failString;
          document.getElementById("signPass").innerHTML = failString;
          return;
        }
        getCertInfo();
      }
      function onLoadPage() {
        checkBrowser();
        checkPKCS11Info();
      }
    </script>
  </head>


  <body onload="onLoadPage()">
    <noscript>
      <p>您所使用的瀏覽器不支援 JavaScript，或是您已將 JavaScript 功能關閉。</p>
      <p>要使用本系統，您必須使用 支援 JavaScript 的瀏覽器。</p>
    </noscript>
    <table
      width="80%"
      class="tab03"
      border="1"
      cellpadding="2"
      cellspacing="1"
      align="center"
    >
      <tbody>
        <tr style="text-align: center">
          <th colspan="3" style="text-align: center">IC卡功能檢測</th>
        </tr>
        <tr align="left">
          <th bgcolor="#eff5f8" width="40%">檢測項目</th>
          <td bgcolor="#ffffff" width="5%">結果</td>
          <td bgcolor="#ffffff">檢測內容</td>
        </tr>
        <tr align="left">
          <th bgcolor="#eff5f8" width="40%"> 1.作業系統及瀏覽器版本</th>
          <td bgcolor="#ffffff" width="5%">
            <span id="browserPass"></span>
          </td>
          <td bgcolor="#ffffff">
            <span id="browser"></span>
          </td>
        </tr>
        <tr align="left">
          <th class="T11b" bgcolor="#eff5f8"> 2.已安裝元件版本</th>
          <td bgcolor="#ffffff" width="5%">
            <span id="versionPass"></span>
          </td>
          <td bgcolor="#ffffff">
            <span id="hipkiLocalSignServerVersion"></span>
          </td>
        </tr>
        <tr align="left">
          <th class="T11b" bgcolor="#eff5f8"> 3.已安裝子元件版本</th>
          <td bgcolor="#ffffff" width="5%">
            <span id="subVersionPass"></span>
          </td>
          <td bgcolor="#ffffff">
            <span id="subVersion"></span>
          </td>
        </tr>
        <tr align="left">
          <th class="T11b" bgcolor="#eff5f8"> 4.PKCS#11版本資訊</th>
          <td bgcolor="#ffffff" width="5%">
            <span id="libraryPass"></span>
          </td>
          <td bgcolor="#ffffff">
            <span id="libraryInfo"></span>
          </td>
        </tr>
        <tr align="left">
          <th class="T11b" bgcolor="#eff5f8"> 5.選擇讀卡機及卡片</th>
          <td bgcolor="#ffffff" width="5%">
            <span id="slotPass"></span>
          </td>
          <td bgcolor="#ffffff">
            <select id="slotDescription"></select>
          </td>
        </tr>
        <tr align="left">
          <th class="T11b" bgcolor="#eff5f8"> 6.輸入PIN碼並開始檢測</th>
          <td bgcolor="#ffffff" width="5%">
            <span id="pinPass"></span>
          </td>
          <td bgcolor="#ffffff">
            <input type="password" maxlength="12" id="pin" name="pin" /><input
              type="button"
              name="startTest"
              value="開始檢測"
              onclick="startTest()"
            />
          </td>
        </tr>
        <tr align="left">
          <th class="T11b" bgcolor="#eff5f8"> 7.簽章驗證測試</th>
          <td bgcolor="#ffffff" width="5%">
            <span id="signPass"></span>
          </td>
          <td bgcolor="#ffffff">
            <span id="signResult"></span>
          </td>
        </tr>
        <!--tr align="left">
   <th class="T11b" bgcolor="#eff5f8"> 7.加密解密測試</th>
   <td bgcolor="#ffffff" width="5%">
    <span id="encryptPass"></span>
   </td>
   <td bgcolor="#ffffff">
    <span id="encryptResult"></span>
   </td>
  </tr-->
        <tr align="left">
          <th class="T11b" bgcolor="#eff5f8"> 8.簽章憑證資訊</th>
          <td bgcolor="#ffffff" width="5%">
            <span id="signCertPass"></span>
          </td>
          <td bgcolor="#ffffff">
            <span id="signCert"></span>
          </td>
        </tr>
        <tr align="left">
          <th class="T11b" bgcolor="#eff5f8"> 9.加密憑證資訊</th>
          <td bgcolor="#ffffff" width="5%">
            <span id="encryptCertPass"></span>
          </td>
          <td bgcolor="#ffffff">
            <span id="encryptCert"></span>
          </td>
        </tr>
        <tr align="left">
          <th class="T11b" bgcolor="#eff5f8"> 重新開始檢測</th>
          <td bgcolor="#ffffff" width="5%">
            <span id="allPass"></span>
          </td>
          <td bgcolor="#ffffff">
            <input
              type="button"
              name="restartTest"
              value="重新開始檢測"
              onclick="location.reload()"
            />
          </td>
        </tr>
      </tbody>
    </table>
  </body>
</html>
[ChtICToken.js] func getSmartCardID 取得卡號 | 自然人憑證開發筆記
[HiPKI Local Server] /pkcs11info 取得讀卡機 | 自然人憑證開發筆記
© 2026 周詳 Sean Chou. All Rights Reserved. / RSS / Sitemap
Powered by Astro & Fuwari
